Terminal Block Universal Power

NA Series

Fully open terminal block for easy wiring
Compatible with a broad range of power supply voltages
- Polarized reflector for stable detection of mirrorlike objects
- Red LED for easy alignment
- Improved resistance to noise with original photo IC

Downloads

NA Series

Model	Detection method	Detecting distance	Output mode	Operation mode	Protective structure
NA-M7R	Polarized retroreflective	0.03 - 7m	Relay output 1a	Light ON/Dark ON	IP66	Contact
NA-M7RF	Polarized retroreflective	0.03 - 7m	Relay output 1a	Light ON/Dark ON + Timer function	IP66	Contact
NA-R10	Diffuse reflective	1m	Relay output 1a	Light ON/Dark ON	IP66	Contact
NA-R10F	Diffuse reflective	1m	Relay output 1a	Light ON/Dark ON + Timer function	IP66	Contact
NA-T20R	Through beam	20m	Relay output 1a	Light On/Dark ON (selectable)	IP66	Contact
NA-T20RA	Through beam	10m	Relay Output 1a	Light On/Dark ON (selectable)		Contact
NA-T20RB	Through beam	10m	Relay Output 1a	Light On/Dark ON (selectable)		Contact
NA-T20RF	Through beam	20m	Relay output 1a	Light ON/Dark ON + Timer function	IP66	Contact
NA-T20RFA						Contact
NA-T20RFB						Contact
NA-T30	Through beam	30m	Relay output 1a	Light On/Dark ON (selectable)	IP66	Contact
NA-T30F	Through beam	30m	Relay output 1a	Light ON/Dark ON + Timer function		Contact

60 x 40mm Reflector for Polarized Retroreflective models

43 x 23mm Reflector for Polarized Retroreflective models

100 x 50mm Reflector for Polarized Retroreflective models

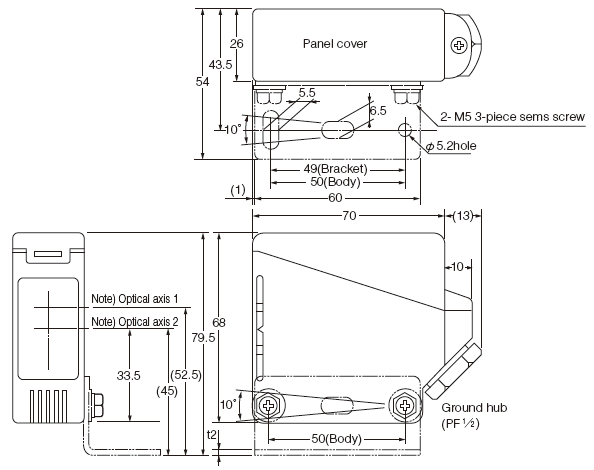

Note) Optical axis 1: through beam type / Optical axis 2: diffuse reflective type, Polarized retroreflective type
The tightening torque for the sensor body and mounting bracket should be 0.8 N m max.

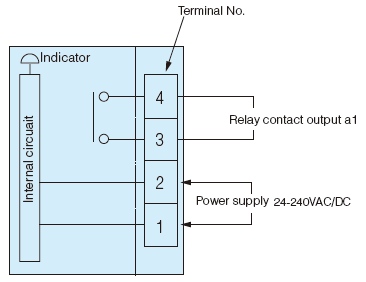

(Note) Transmitter of the through beam type only has power supply lines.

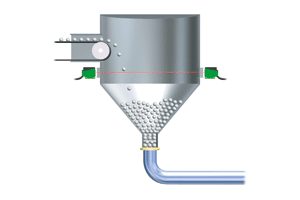

Detection of level of material inside hopper

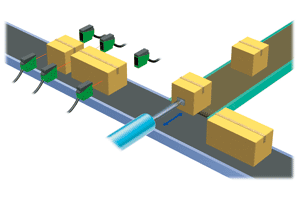

Several sensors are used to identify the length of carton boxes.

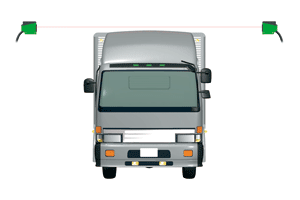

High-powered sensor for detecting distances of up to 30 m and alarming excessive height.
